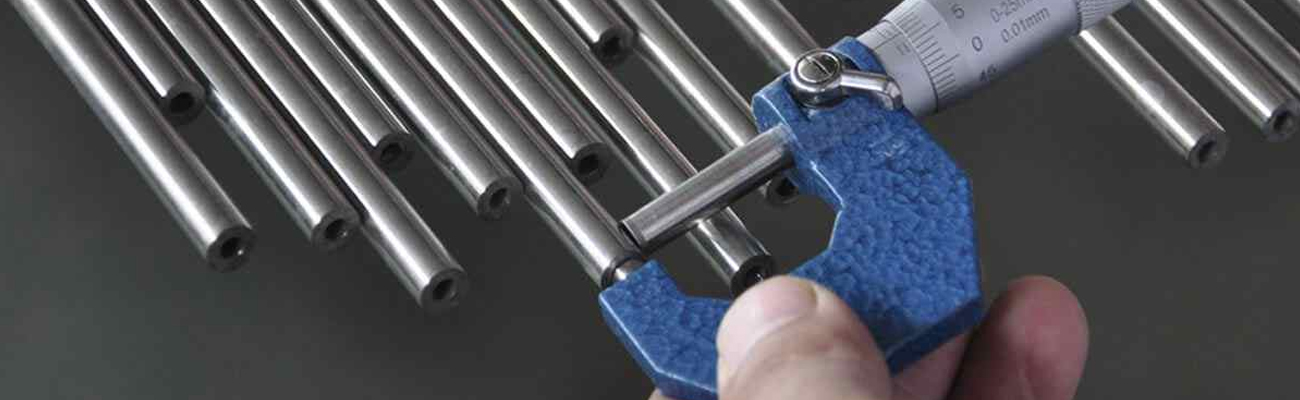

Stainless Steel Capillary Tubes

Stainless Steel Capillary Tubing Exporter, Manufacturers Of Stainless Steel Capillary Tubing, Stainless Steel Seamless Capillary Tubing In India At Best Price.

Stainless Steel Capillary Tubes in Mumbai

Suppliers Of Stainless Steel Welded Capillary Tubes, Huge Inventory Of Industrial Capillary Tubes, SS Capillary Tubing Manufacturers In India.

Philips Metal Industries provides Stainless Steel Capillary Tube Suppliers with small bore diameters and precise thicknesses to meet the needs of its customers. The instrumentation industries make extensive use of it. 316 and SS 304 capillary tubing are quite effective in various temperatures and can be found in precisely cut lengths. Because SS capillary tubing is more precise and corrosion-resistant, it is the recommended option for most applications. High-pressure applications are typically the domain of stainless steel 316 capillary tubing.

Capillary tubes are unique, finely crafted, circular-profiled, metallurgical items that are produced by cold drawing. They are distinguished from typical hot and cold manufactured seamless pipes by having incredibly thin walls and diameters, especially in the narrowest dimensions. In addition to their small size, the capillary tubes are distinguished by substantially fewer variances in the product's length, ends, straightness, and surface precision. The needle used in regular medicine is the finest visual image to pique the reader's curiosity.

We specialize in the delivery of high-quality seamless capillary tubing in stainless steel grades 304 and 316, which are highly resistant to corrosion. SS Capillary Tubes come in sizes ranging from 0.30 mm to 8.00 mm. They are available with strong, normal, or thin walls. Refrigerant capillary tubes made of stainless steel have outside diameters between 0.30 and 31.75 mm, thicknesses between 0.06 and 1.65 mm, and lengths between 1.0 and 6.0 mm. We guarantee the best possible surface quality for all of our capillary stainless steel tubing. Philips Metal is a PED-approved manufacturer, a Government of India-recognized Export House, and an ISO 9001:2008 certified company. The 304 stainless steel capillary tubes we offer have been cleaned, polished, and passivated so they are ready for usage right away. We are also one of the most renowned manufacturers of stainless steel capillary tubes in India, namely SS 304 capillary tubes. Purchase 316 SS Capillary Tubing from us for a lower cost in India than what is offered by other Indian cities like Ahmedabad (Gujarat), Faridabad, Nagpur, Raipur, Aurangabad, Gurgaon, Indore, Khopoli, Kolhapur, Jaipur, Kolkata, and so on.

Stainless Steel Capillary Tube Specification Specification

Dimensions ASTM/ASME
Standard ASTM, DIN, GB, AISI, JIS, ISO, etc other International Standards
Material Grade 301, 304, 304L,304LN,304N ,305,309,309S,310,310S,316,316L.316LN, 316N,316Ti,317,317L,321,321H,347,347H,904L
Range 0.35mm to 6.35mm OD in thickness ranging from 0.1mm to 1.2mm.
Outer Diameter 0.3 –12.0 mm
Thickness 1mm to 20mm, SCH 5/5S, 10/10S, 20/20S, 40/40S, 80/80S, 120/120S, 160/160S as per ANSI B36.19/36.10
Length Single Random, Double Random & Required Length
Form Round, Square, Rectangular, Hydraulic Pipes
Type As Welded, EFW, ERW, Seamless, Semi Seamless, Bead Removed
End Plain end, Bevelled end

Dimensions and Wall Thickness of Stainless Steel Capillary Tube

Gauge Outside Diameter Tolerance mm Regular Wall (RW) mm Thin Wall (TW) mm Extra Thin Wall (XTW) mm Ultra Thin Wall (UTW) mm
30 0.304 – 0.317 0.064 – 0.089
29 o.330 – 0.342 0.064 – 0.089
28 0.355 – 0.368 0.076 – 0.102
27 0.406 – 0.419 0.089 – 0.115 0.064 – 0.089
26 0.457 – 0.469 0.089 – 0.114
25 0.508 – 0.520 0.115 – 0.140 0.089 – 0.114
24 0.558 – 0.571 0.114 – 0.140 0.089 – 0.114 0.051 – 0.102
23 0.635 – 0.647 0.140 – 0.165 0.089 – 0.114 0.051 – 0.102
22 0.711 – 0.723 0.140 – 0.165 0.096 – 0.121 0.077 – 0.102 0.051 – 0.102
21 0.812 – 0.825 0.140 – 0.165 0.102 – 0.127 0.051 – 0.102
20 0.901 – 0.914 0.108 – 0.165 0.108 – 0.134
19 1.054 – 1.079 0.166 – 0.216 0.102 – 0.140 0.070 – 0.108
18 1.257 – 1.282 0.191 – 0.241 0.127 – 0.165 0.083 – 0.121 0.051 – 0.102
17 1.460 – 1.485 0.177 – 0.229 0.115 – 0.152 0.083 – 0.127 0.057 – 0.102
16 1.638 – 1.663 0.204 – 0.254 0.127 – 0.165 0.096 – 0.133 0.070 – 0.121
15 1.816 – 1.841 0.204 – 0.254 0.127 – 0.165 0.096 – 0.134 0.070 – 0.121
14 2.082 – 2.133 0.216 – 0.292 0.165 – 0.229 0.114 – 0.165 0.076 – 0.134
13 2.387 – 2.438 0.267 – 0.343 0.191 – 0.267
12 2.743 – 2.749 0.267 – 0.321
11 3.023 – 3.073 0.293 – 0.368 0.216 – 0.292
10 3.378 – 3.429 0.318 – 0.394 0.216 – 0.292

Stainless Steel Capillary Tube Pressure Rating

AVE. WALL INCHES MIN YIELD STRENGTH (PSI) MIN TENSILE STRENGTH (PSI) THEORETICAL BURST PRESSURE * (PSI) WORKING PRESSURE (PSI) 25% OF BURST THEORETICAL YIELD POINT ** (PSI) COLLAPSE PRESSURE *** (PSI)
0.250 0.020 30,000 75,000 14,286 3,571 5,714 4,416
0.250 0.028 30,000 75,000 21,649 5,412 8,660 5,967
0.250 0.035 30,000 75,000 29,167 7,292 11,667 7,224
0.250 0.049 30,000 75,000 48,355 12,089 19,342 9,455
0.250 0.065 30,000 75,000 81,250 20,313 32,500 11,544
0.375 0.020 30,000 75,000 8,955 2,239 3,582 3,029
0.375 0.028 30,000 75,000 13,166 3,292 5,266 4,145
0.375 0.035 30,000 75,000 17,213 4,303 6,885 5,077
0.375 0.049 30,000 75,000 26,534 6,634 10,614 6,816
0.375 0.065 30,000 75,000 39,796 9,949 15,918 8,597
0.500 0.020 30,000 75,000 6,522 1,630 2,609 2,304
0.500 0.028 30,000 75,000 9,459 2,365 3,784 3,172
0.500 0.035 30,000 75,000 12,209 3,052 4,884 3,906
0.500 0.049 30,000 75,000 18,284 4,571 7,313 5,304
0.500 0.065 30,000 75,000 26,351 6,588 10,541 6,786
0.500 0.083 30,000 75,000 37,275 9,319 14,910 8,307
0.625 0.020 30,000 75,000 5,128 1,282 2,051 1,859
0.625 0.028 30,000 75,000 7,381 1,845 2,953 2,568
0.625 0.035 30,000 75,000 9,459 2,365 3,784 3,172
0.625 0.049 30,000 75,000 13,947 3,487 5,579 4,335
0.625 0.065 30,000 75,000 19,697 4,924 7,879 5,591
0.625 0.083 30,000 75,000 27,124 6,781 10,850 6,910
0.625 0.095 30,000 75,000 32,759 8,190 13,103 7,734
0.625 0.109 30,000 75,000 40,172 10,043 16,069 8,639
0.750 0.028 30,000 75,000 6,052 1,513 2,421 2,156
0.750 0.035 30,000 75,000 7,721 1,930 3,088 2,669
0.750 0.049 30,000 75,000 11,273 2,818 4,509 3,664
0.750 0.065 30,000 75,000 15,726 3,931 6,290 4,749
0.750 0.083 30,000 75,000 21,318 5,330 8,527 5,905
0.750 0.095 30,000 75,000 25,446 6,362 10,179 6,637
0.750 0.109 30,000 75,000 30,733 7,683 12,293 7,453
0.750 0.120 30,000 75,000 35,294 8,824 14,118 8,064
0.875 0.020 30,000 75,000 3,593 898 1,437 1,340
0.875 0.028 30,000 75,000 5,128 1,282 2,051 1,859
0.875 0.035 30,000 75,000 6,522 1,630 2,609 2,304
0.049 30,000 75,000 9,459 2,365 3,784 3,172
0.875 0.065 30,000 75,000 13,087 3,272 5,235 4,126
0.875 0.083 30,000 75,000 17,560 4,390 7,024 5,152
0.875 0.095 30,000 75,000 20,803 5,201 8,321 5,807
0.875 0.109 30,000 75,000 24,886 6,221 9,954 6,543
0.875 0.120 30,000 75,000 28,346 7,087 11,339 7,100
1.000 0.028 30,000 75,000 4,449 1,112 1,780 1,633
1.000 0.035 30,000 75,000 5,645 1,411 2,258 2,027
1.000 0.049 30,000 75,000 8,149 2,037 3,259 2,796
1.000 0.065 30,000 75,000 11,207 2,802 4,483 3,647
1.000 0.083 30,000 75,000 14,928 3,732 5,971 4,567
1.000 0.095 30,000 75,000 17,593 4,398 7,037 5,159
1.000 0.109 30,000 75,000 20,908 5,227 8,363 5,827
1.000 0.120 30,000 75,000 23,684 5,921 9,474 6,336
1.000 0.134 30,000 75,000 27,459 6,865 10,984 6,963
1.250 0.035 30,000 75,000 4,449 1,112 1,780 1,633
1.250 0.049 30,000 75,000 6,380 1,595 2,552 2,260

Stainless Steel Capillary Tube Dimensional Tolerances

SIZE OD NOMINAL WALL THICKNESS OUTSIDE DIAMETER TOLERANCE LENGTH TOLERANCE WALL THICKNESS TOLERANCE
(in) (mm) (in) (mm) (in) (mm) (in) (mm) (%)
½ 12.7 0.065 1.65 +/-0.005 +/-0.13 +⅛, -0 +3.18, -0 +/-10.0%
¾ 19.1 0.065 1.65 +/-0.005 +/-0.13 +⅛, -0 +3.18, -0 +/-10.0%
1 25.4 0.065 1.65 +/-0.005 +/-0.13 +⅛, -0 +3.18, -0 +/-10.0%
1½ 38.1 0.065 1.65 +/-0.008 +/-0.20 +⅛, -0 +3.18, -0 +/-10.0%
2 50.8 0.065 1.65 +/-0.008 +/-0.20 +⅛, -0 +3.18, -0 +/-10.0%
2½ 63.5 0.065 1.65 +/-0.010 +/-0.25 +⅛, -0 +3.18, -0 +/-10.0%
3 76.2 0.065 1.65 +/-0.010 +/-0.25 +⅛, -0 +3.18, -0 +/-10.0%
4 101.6 0.083 2.11 +/-0.015 +/-0.38 +⅛, -0 +3.18, -0 +/-10.0%
6 152.4 0.109 2.77 +/-0.030 +/-0.76 +1, -0 +25.4, -0 +/-10.0%
